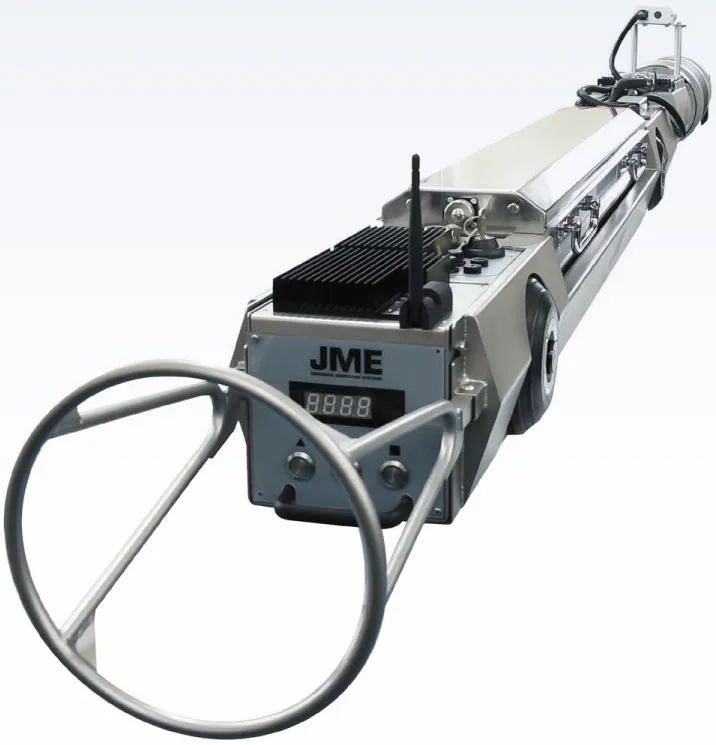

The 6″ pipeline crawler
Suitable for pipelines with internal diameters from 5.5″ to 16″.
Internal X-ray systems
Pipeline crawlers
Internal radiography
X-ray crawler inspection
Inspect pipeline welds faster with a remotely controlled X-ray system operating from inside the pipe.
The crawler positions an electronic source tube precisely at each weld while film is wrapped around the outside of the pipeline. This controlled setup supports consistent images, shorter exposures and efficient field production.
Built for the pipeline
Three different models of internal pipeline crawlers
Barracuda Specialty Services offers three crawler models to suit a wide range of pipeline sizes.
The 10″ pipeline crawler
Suitable for pipelines from 10″ to 60″ in diameter.
The 24″ pipeline crawler
Can be used on pipelines from 24″ to 72″ in diameter.
Field-ready construction

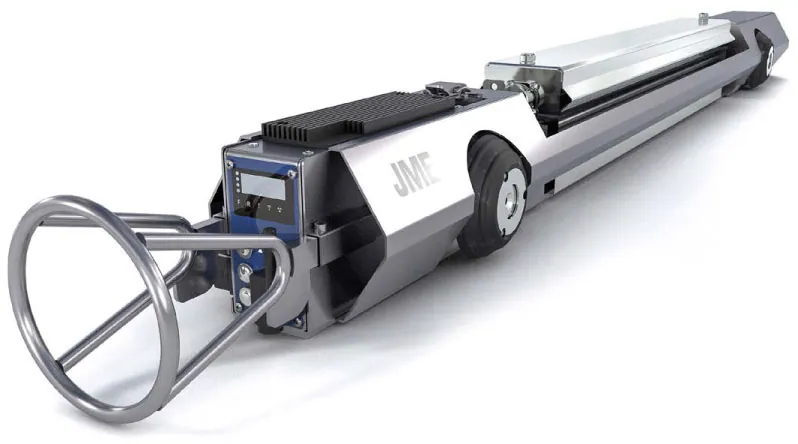

Concept of modular construction
Pipeline crawlers designed and manufactured by JME Ltd. follow a modular construction concept that provides:
- Safe, efficient and cost-effective field units
- Easy operation and maintenance
- Quickly and easily interchangeable modules
Every crawler is constructed using high-grade materials for a quality finish, easier servicing and extended service life. Military-specification electronic components help ensure reliability in the harsh environments encountered in service.
Higher-quality imaging
Pipeline crawlers
Each crawler is adjustable throughout its recommended size range using wheel spacers designed specifically for that crawler type.
X-ray crawlers substantially speed up conventional film inspection. A remotely controlled crawler carrying an electronic source tube is inserted into the piping while film is wrapped around the welds. The operator positions the crawler at each weld, exposes the film and moves on to the next weld.
Compared with gamma rays used in traditional radiography, X-ray crawlers can produce higher-quality images while requiring a smaller barricaded area and shorter shot time.
